📋 Overview

This plan defines the Bicep implementation for the Nordic Fresh Foods (FreshConnect MVP) platform — a cost-optimized N-tier web application in swedencentral. The deployment uses Azure Verified Modules (AVM) for all resources and a 5-phase deployment strategy with approval gates.

Property	Value
Project	nordic-fresh-foods
IaC Tool	Bicep (AVM-first)
Region	swedencentral
Environments	Dev + Prod
Deployment Strategy	Phased (5 phases)
Total Resources	19 resource types
Estimated Monthly Cost	~$204 (Prod + Dev steady-state)
Budget	<€1,000/month
Compliance	GDPR, PCI-DSS

Key Governance Findings

9 mandatory tags on resource groups (Azure Policy Deny) — expanded from original 4
Azure AD-only auth required on SQL Server (MCAPSGov Deny)
MFA required for deployment operations (Management Group Deny)
Tag inheritance via Modify policy: 9 tags auto-propagate from RG to child resources

See Governance Constraints for full details.

📦 Resource Inventory

Production Environment

#	Resource	Type	AVM Module	Version	SKU / Tier
1	Resource Group	`Microsoft.Resources/resourceGroups`	N/A (subscription-level)	—	—
2	Virtual Network	`Microsoft.Network/virtualNetworks`	`br/public:avm/res/network/virtual-network`	`0.7.2`	Standard (3 subnets)
3	Log Analytics Workspace	`Microsoft.OperationalInsights/workspaces`	`br/public:avm/res/operational-insights/workspace`	`0.15.0`	Pay-per-GB
4	Application Insights	`Microsoft.Insights/components`	`br/public:avm/res/insights/component`	`0.7.1`	Workspace-based
5	Key Vault	`Microsoft.KeyVault/vaults`	`br/public:avm/res/key-vault/vault`	`0.13.3`	Standard
6	Azure SQL Server	`Microsoft.Sql/servers`	`br/public:avm/res/sql/server`	`0.21.1`	—
7	Azure SQL Database	`Microsoft.Sql/servers/databases`	(via SQL Server module)	—	S0 (10 DTU)
8	Storage Account	`Microsoft.Storage/storageAccounts`	`br/public:avm/res/storage/storage-account`	`0.32.0`	Standard LRS
9	Private DNS Zone (SQL)	`Microsoft.Network/privateDnsZones`	`br/public:avm/res/network/private-dns-zone`	`0.8.1`	`privatelink.database.windows.net`
10	Private DNS Zone (Blob)	`Microsoft.Network/privateDnsZones`	`br/public:avm/res/network/private-dns-zone`	`0.8.1`	`privatelink.blob.core.windows.net`
11	Private Endpoint (SQL)	`Microsoft.Network/privateEndpoints`	`br/public:avm/res/network/private-endpoint`	`0.12.0`	—
12	Private Endpoint (Blob)	`Microsoft.Network/privateEndpoints`	`br/public:avm/res/network/private-endpoint`	`0.12.0`	—
13	App Service Plan	`Microsoft.Web/serverfarms`	`br/public:avm/res/web/serverfarm`	`0.7.0`	S1 Linux (2 instances)
14	App Service	`Microsoft.Web/sites`	`br/public:avm/res/web/site`	`0.22.0`	S1 (on plan)
15	Budget Alert (Aggregate)	`Microsoft.Consumption/budgets`	Raw Bicep resource	—	€1,000/month (subscription)
16	Budget Alert (Prod)	`Microsoft.Consumption/budgets`	Raw Bicep resource	—	€800/month (RG-scoped)
17	Budget Alert (Dev)	`Microsoft.Consumption/budgets`	Raw Bicep resource	—	€200/month (RG-scoped)
18	Private DNS Zone (KV)	`Microsoft.Network/privateDnsZones`	`br/public:avm/res/network/private-dns-zone`	`0.8.1`	`privatelink.vaultcore.azure.net`
19	Private Endpoint (KV)	`Microsoft.Network/privateEndpoints`	`br/public:avm/res/network/private-endpoint`	`0.12.0`	—

Dev Environment Overrides

Resource	Prod SKU	Dev SKU	Notes
App Service Plan	S1 (2 instances)	B1 (1 instance)	No autoscale in dev
Azure SQL Database	S0 (10 DTU)	Basic (5 DTU)	Reduced capacity
Virtual Network	3 subnets	1 subnet	No PE subnet in dev
Private Endpoints	2 (SQL + Storage)	0	Not needed for dev
Private DNS Zones	2	0	Not needed for dev

🗂️ Module Structure

infra/bicep/nordic-fresh-foods/
├── main.bicep                      # Orchestrator — all module calls
├── main.bicepparam                 # Parameter file (prod defaults)
├── main.dev.bicepparam             # Parameter file (dev overrides)
├── deploy.ps1                      # Deployment script (phased)
├── modules/
│   ├── network.bicep               # VNet + subnets + NSGs
│   ├── monitoring.bicep            # Log Analytics + App Insights
│   ├── keyvault.bicep              # Key Vault + access policies
│   ├── sql.bicep                   # SQL Server + Database + PE
│   ├── storage.bicep               # Storage Account + PE
│   ├── dns.bicep                   # Private DNS Zones + VNet links
│   ├── compute.bicep               # App Service Plan + App Service
│   └── budget.bicep                # Consumption budget + alerts

Module Interface Contract

Every module accepts these standard parameters:

Parameters (standard):
  location: string # Region (default: resourceGroup().location)
  tags: object # All 11 tags (9 policy + 2 best-practice)
  uniqueSuffix: string # uniqueString(resourceGroup().id)
  environment: string # 'dev' | 'prod'

# Policy-enforced tag keys (EXACT names from Azure Policy Deny rule):
#   1. environment          2. owner
#   3. costcenter           4. application
#   5. workload             6. sla
#   7. backup-policy        8. maint-window
#   9. technical-contact
# Best-practice additions: ManagedBy, Project

Parameters (module-specific):
  # Each module defines additional params as needed

Outputs (standard):
  resourceId: string # Resource ID
  resourceName: string # Resource name
  principalId: string # Managed Identity principal (where applicable)

Parameter Flow

flowchart TB
    Main["main.bicep"] -->|"location, tags, uniqueSuffix, env"| Network["network.bicep"]
    Main -->|"location, tags, uniqueSuffix"| Monitoring["monitoring.bicep"]
    Main -->|"location, tags, uniqueSuffix, vnetId"| KeyVault["keyvault.bicep"]
    Main -->|"location, tags, uniqueSuffix, subnetId, dnsZoneId"| SQL["sql.bicep"]
    Main -->|"location, tags, uniqueSuffix, subnetId, dnsZoneId"| Storage["storage.bicep"]
    Main -->|"location, tags, vnetId"| DNS["dns.bicep"]
    Main -->|"location, tags, uniqueSuffix, subnetId, appInsightsKey, kvUri"| Compute["compute.bicep"]
    Main -->|"tags, budgetAmount"| Budget["budget.bicep"]

🔨 Implementation Tasks

Task 1: main.bicep — Orchestrator

resource: main.bicep
type: orchestrator
dependencies: []
config:
  - Define all parameters (location, environment, tags, SKU overrides)
  - Generate uniqueSuffix: uniqueString(resourceGroup().id)
  - Build consolidated tags object with EXACT policy-enforced keys:
      environment, owner, costcenter, application, workload, sla,
      backup-policy, maint-window, technical-contact
      + ManagedBy, Project (best-practice)
  - Call all modules in dependency order
  - Output key resource IDs and endpoints

Task 2: network.bicep — Virtual Network

resource: Microsoft.Network/virtualNetworks
module: br/public:avm/res/network/virtual-network:0.7.2
sku: Standard
dependencies: []
config:
  name: vnet-nordic-fresh-foods-{env}
  addressPrefixes: ["10.0.0.0/16"]
  subnets:
    - name: snet-app
      addressPrefix: "10.0.1.0/24"
      delegation: Microsoft.Web/serverFarms
      nsg: nsg-app-{env}
    - name: snet-data
      addressPrefix: "10.0.2.0/24"
      nsg: nsg-data-{env}
    - name: snet-pe
      addressPrefix: "10.0.3.0/24"
      nsg: nsg-pe-{env}
      privateEndpointNetworkPolicies: Enabled
  conditional: Dev uses snet-app only (no snet-pe, synthetic data only)
  diagnosticSettings:
    vnet:
      workspaceResourceId: logAnalytics.outputs.resourceId
      categoryGroup: allLogs # VMProtectionAlerts
      metricCategories: AllMetrics
    nsg: # All NSGs — NetworkSecurityGroupEvent + RuleCounter
      workspaceResourceId: logAnalytics.outputs.resourceId
      categoryGroup: allLogs
  tags: all 11 tags
  naming: CAF — vnet-{project}-{env}

Task 3: monitoring.bicep — Log Analytics + Application Insights

resource: Microsoft.OperationalInsights/workspaces + Microsoft.Insights/components
modules:
  - br/public:avm/res/operational-insights/workspace:0.15.0
  - br/public:avm/res/insights/component:0.7.1
sku: Pay-per-GB
dependencies: []
config:
  logAnalytics:
    name: log-nordic-fresh-foods-{env}
    retentionInDays: 30
    dailyQuotaGb: 5
  appInsights:
    name: appi-nordic-fresh-foods-{env}
    kind: web
    applicationType: web
    workspaceResourceId: logAnalytics.outputs.resourceId
    samplingPercentage: 50 # reduce ingestion cost; tune post-launch
  ingestionGuardrails:
    prod:
      dailyQuotaGb: 2 # aligned to ~$204 cost estimate
      expectedMonthlyGb: 1-3
    dev:
      dailyQuotaGb: 0.5
      expectedMonthlyGb: 0.1-0.5
    dataCollectionRules:
      - Filter verbose dependency telemetry in prod
      - Exclude health-check request logging
      - Set 30-day retention (matches Log Analytics)
  tags: all 11 tags
  naming: CAF — log-{project}-{env}, appi-{project}-{env}

Task 4: keyvault.bicep — Key Vault

resource: Microsoft.KeyVault/vaults
module: br/public:avm/res/key-vault/vault:0.13.3
sku: Standard
dependencies: [network.bicep]
config:
  name: kv-nff-{env}-{suffix}
  enableRbacAuthorization: true
  enablePurgeProtection: true
  enableSoftDelete: true
  softDeleteRetentionInDays: 90
  publicNetworkAccess: Disabled (prod) | Enabled (dev)
  networkAcls:
    defaultAction: Deny
    bypass: AzureServices
  privateEndpoint: # PROD ONLY — required since publicNetworkAccess: Disabled
    name: pe-kv-nordic-fresh-foods-{env}
    subnetId: snet-pe
    groupId: vault
    privateDnsZoneId: privatelink.vaultcore.azure.net
  secretConsumption:
    pattern: Key Vault References in App Service appSettings
    example: "@Microsoft.KeyVault(SecretUri=https://kv-nff-prod-{suffix}.vault.azure.net/secrets/{name})"
  diagnosticSettings:
    workspaceResourceId: logAnalytics.outputs.resourceId
    categoryGroup: audit # AuditEvent category — required by MCAPSGov Audit
    metricCategories: AllMetrics
  tags: all 11 tags
  naming: CAF — kv-{short}-{env}-{suffix} (max 24 chars)

Task 5: dns.bicep — Private DNS Zones

resource: Microsoft.Network/privateDnsZones
module: br/public:avm/res/network/private-dns-zone:0.8.1
dependencies: [network.bicep]
config:
  zones:
    - name: privatelink.database.windows.net
      virtualNetworkLinks:
        - virtualNetworkResourceId: vnet.outputs.resourceId
    - name: privatelink.blob.core.windows.net
      virtualNetworkLinks:
        - virtualNetworkResourceId: vnet.outputs.resourceId
    - name: privatelink.vaultcore.azure.net
      virtualNetworkLinks:
        - virtualNetworkResourceId: vnet.outputs.resourceId
  conditional: Prod only (skip for dev)
  tags: all 11 tags

Task 6: sql.bicep — Azure SQL Server + Database + Private Endpoint

resource: Microsoft.Sql/servers + databases
module: br/public:avm/res/sql/server:0.21.1
sku: S0 (10 DTU) prod | Basic (5 DTU) dev
dependencies: [network.bicep, dns.bicep, monitoring.bicep]
config:
  server:
    name: sql-nordic-fresh-foods-{env}
    minimalTlsVersion: '1.2'
    administrators:
      azureADOnlyAuthentication: true  # POLICY REQUIRED (Deny)
      login: Entra admin group
      sid: <admin-group-object-id>
      principalType: Group
    publicNetworkAccess: Disabled (prod) | Enabled (dev)
  database:
    name: sqldb-freshconnect-{env}
    sku: { name: S0, tier: Standard } (prod) | { name: Basic, tier: Basic } (dev)
    maxSizeBytes: 268435456000  # 250 GB
  privateEndpoint:
    name: pe-sql-nordic-fresh-foods-{env}
    subnetId: snet-pe
    groupId: sqlServer
    privateDnsZoneId: privatelink.database.windows.net
    conditional: Prod only
  diagnosticSettings:
    workspaceResourceId: logAnalytics.outputs.resourceId
    categoryGroup: allLogs
    metricCategories: AllMetrics
  securityAlertPolicies:  # Defender for SQL — satisfies MCAPSGov Audit
    state: Enabled
    emailAccountAdmins: true
    retentionDays: 30
  tags: all 11 tags
  naming: CAF — sql-{project}-{env}, sqldb-{app}-{env}
  serverIdentity:
    type: SystemAssigned  # Required for SQL to resolve Entra principals
    graphPermissions:
      - User.Read.All   # Resolve managed identity display names
    note: |
      The SQL logical server needs a system-assigned identity with Microsoft Graph
      User.Read.All (or Directory Readers role) to resolve App Service managed
      identity principals during CREATE USER ... FROM EXTERNAL PROVIDER.
      Alternative: assign Directory Readers role to the SQL server identity.
  postDeployment:
    - step: Create contained database user for App Service MI
      command: |
        CREATE USER [app-nordic-fresh-foods-{env}-{suffix}] FROM EXTERNAL PROVIDER;
        ALTER ROLE db_datareader ADD MEMBER [app-nordic-fresh-foods-{env}-{suffix}];
        ALTER ROLE db_datawriter ADD MEMBER [app-nordic-fresh-foods-{env}-{suffix}];
      timing: After Phase 5 (App Service MI principal available)
      prerequisite: |
        1. Entra admin group must be authenticated to SQL
        2. SQL server identity must have Graph permissions (see serverIdentity above)
      executionPath:
        prod: |
          Use AzureCLI deploymentScript resource (Microsoft.Resources/deploymentScripts)
          running inside the VNet (subnetResourceIds: [snet-app]) to reach SQL via PE.
          Script authenticates as the Entra admin group's service principal.
        dev: |
          Direct sqlcmd from deployer workstation (public access enabled on dev SQL).
      note: Required because azureADOnlyAuthentication=true prevents SQL auth

Task 7: storage.bicep — Storage Account + Private Endpoint

resource: Microsoft.Storage/storageAccounts
module: br/public:avm/res/storage/storage-account:0.32.0
sku: Standard_LRS
dependencies: [network.bicep, dns.bicep, monitoring.bicep]
config:
  name: stnff{env}{suffix}
  kind: StorageV2
  minimumTlsVersion: TLS1_2
  supportsHttpsTrafficOnly: true
  allowBlobPublicAccess: false
  allowSharedKeyAccess: false
  publicNetworkAccess: Disabled (prod) | Enabled (dev)
  networkAcls:
    defaultAction: Deny (prod) | Allow (dev)
    bypass: AzureServices
  blobServices:
    containers:
      - name: product-images
        publicAccess: None
      - name: assets
        publicAccess: None
  privateEndpoints:
    - name: pe-st-nordic-fresh-foods-{env}
      subnetResourceId: snet-pe
      service: blob
      privateDnsZoneResourceIds: [privatelink.blob.core.windows.net]
      conditional: Prod only
  diagnosticSettings:
    workspaceResourceId: logAnalytics.outputs.resourceId
  tags: all 11 tags
  naming: CAF — st{short}{env}{suffix} (max 24 chars, no hyphens)

Task 8: compute.bicep — App Service Plan + App Service

resource: Microsoft.Web/serverfarms + Microsoft.Web/sites
modules:
  - br/public:avm/res/web/serverfarm:0.7.0
  - br/public:avm/res/web/site:0.22.0
sku: S1 (prod) | B1 (dev)
dependencies: [network.bicep, keyvault.bicep, monitoring.bicep, sql.bicep, storage.bicep]
config:
  plan:
    name: asp-nordic-fresh-foods-{env}
    kind: linux
    sku: { name: S1, capacity: 2 } (prod) | { name: B1, capacity: 1 } (dev)
    reserved: true  # Linux
  site:
    name: app-nordic-fresh-foods-{env}-{suffix}
    kind: app,linux
    httpsOnly: true
    identity:
      type: SystemAssigned
    siteConfig:
      minTlsVersion: '1.2'
      ftpsState: FtpsOnly
      alwaysOn: true (prod) | false (dev)
      vnetRouteAllEnabled: true
      http20Enabled: true
    virtualNetworkSubnetId: snet-app
    appSettings:
      - name: APPLICATIONINSIGHTS_CONNECTION_STRING
        value: appInsights.outputs.connectionString
      - name: AZURE_KEY_VAULT_URI
        value: keyVault.outputs.uri
  autoscaleSettings:  # Prod only
    minCount: 2
    maxCount: 3
    rules:
      - metricName: CpuPercentage
        operator: GreaterThan
        threshold: 70
        direction: Increase
        changeCount: 1
      - metricName: CpuPercentage
        operator: LessThan
        threshold: 30
        direction: Decrease
        changeCount: 1
  roleAssignments:
    - roleDefinitionId: Key Vault Secrets User
      principalId: site.outputs.principalId
    - roleDefinitionId: Storage Blob Data Contributor
      principalId: site.outputs.principalId
  diagnosticSettings:
    workspaceResourceId: logAnalytics.outputs.resourceId
  tags: all 11 tags
  naming: CAF — asp-{project}-{env}, app-{project}-{env}-{suffix}

Task 9: budget.bicep — Consumption Budget + Alerts

resource: Microsoft.Consumption/budgets
module: Raw Bicep (no subscription-scope AVM)
dependencies: []
config:
  budgetTopology:
    aggregate:
      name: budget-nordic-fresh-foods
      scope: subscription
      amount: budgetAmount # parameterized, default EUR 1000
      timeGrain: Monthly
      category: Cost
    perEnvironment:
      - name: budget-nff-prod
        scope: resourceGroup (rg-nordic-fresh-foods-prod)
        amount: budgetAmountProd # parameterized, default EUR 800
      - name: budget-nff-dev
        scope: resourceGroup (rg-nordic-fresh-foods-dev)
        amount: budgetAmountDev # parameterized, default EUR 200
  notifications:
    - operator: GreaterThan
      threshold: 80
      contactEmails: [budgetContactEmail] # parameterized
      thresholdType: Forecasted
    - operator: GreaterThan
      threshold: 100
      contactEmails: [budgetContactEmail]
      thresholdType: Forecasted
      actionGroupId: actionGroup.outputs.resourceId # escalation
    - operator: GreaterThan
      threshold: 120
      contactEmails: [budgetContactEmail]
      thresholdType: Forecasted
      actionGroupId: actionGroup.outputs.resourceId # escalation
    - operator: GreaterThan
      threshold: 90
      contactEmails: [budgetContactEmail]
      thresholdType: Actual
  anomalyDetection:
    note: |
      Azure Cost Anomaly Alerts are a SEPARATE Cost Management capability,
      not a property of Microsoft.Consumption/budgets. Implement via
      Microsoft.CostManagement/scheduledActions (subscription scope) or
      configure in Azure Portal > Cost Management > Cost alerts > Anomaly alerts.
      The Code Generator should create a separate cost-anomaly-alert module or
      document as a post-deployment manual step.
    scope: subscription
    contactEmails: [budgetContactEmail, technicalContact]
  tags: all 11 tags

Task 10: Parameter Files

resource: main.bicepparam + main.dev.bicepparam
type: configuration
dependencies: [all modules]
config:
  main.bicepparam:\n    environment: 'prod'\n    location: swedencentral\n    tags: prod values for all 11 tags (9 policy-enforced keys:\n          environment, owner, costcenter, application, workload,\n          sla, backup-policy, maint-window, technical-contact\n          + ManagedBy, Project)\n    sqlAdminGroupObjectId: <to-be-provided>\n    sqlAdminGroupName: <to-be-provided>\n    budgetAmount: 800  # EUR, prod RG-scoped\n    budgetContactEmail: <parameterized>\n    technicalContact: <from technical-contact tag>\n  main.dev.bicepparam:\n    environment: 'dev'\n    enablePrivateEndpoints: false\n    appServicePlanSku: { name: B1, capacity: 1 }\n    sqlDatabaseSku: { name: Basic, tier: Basic }\n    budgetAmount: 200  # EUR, dev RG-scoped\n    tags: dev values for all 11 tags", "oldString": "  main.bicepparam:\n    environment: 'prod'\n    location: swedencentral\n    tags: prod values for all 11 tags\n    sqlAdminGroupObjectId: <to-be-provided>\n    sqlAdminGroupName: <to-be-provided>\n    budgetContactEmail: cto@nordicfreshfoods.eu\n  main.dev.bicepparam:\n    environment: 'dev'\n    enablePrivateEndpoints: false\n    appServicePlanSku: { name: B1, capacity: 1 }\n    sqlDatabaseSku: { name: Basic, tier: Basic }\n    tags: dev values for all 11 tags

Task 11: deploy.ps1 — Deployment Script

resource: PowerShell deployment script
type: tooling
dependencies: [all modules]
config:
  - Phase-aware deployment with az deployment group create
  - What-If preview before each phase
  - Approval gates between phases
  - Error handling and rollback guidance
  - MFA prerequisite check
  - Activity Log diagnostic routing (subscription-scoped, Phase 2):
      az monitor diagnostic-settings subscription create
        --name "activity-to-law"
        --workspace logAnalyticsWorkspaceId
        --logs '[{"category":"Administrative","enabled":true},{"category":"Security","enabled":true},{"category":"Policy","enabled":true}]'
  - SQL contained user bootstrap (Phase 5 post-deploy):
      Prod: AzureCLI deploymentScript resource in snet-app (VNet-injected)
      Dev: Direct sqlcmd from deployer workstation
  rollbackMatrix:
    phase1:
      trigger: VNet/NSG deployment failure
      action: Delete resource group and retry
      checkpoint: RG created with 9 tags
    phase2:
      trigger: Log Analytics/AppInsights failure
      action: Re-run Phase 2 deployment (idempotent)
      checkpoint: workspace-id available
    phase3:
      trigger: Key Vault or DNS zone failure
      action: Re-run Phase 3 (idempotent); verify DNS links
      checkpoint: KV accessible, DNS zones linked
    phase4:
      trigger: SQL/Storage/PE failure
      action: Delete failed PE resources, re-run Phase 4
      checkpoint: PE connectivity verified, public access disabled
    phase5:
      trigger: App Service or role assignment failure
      action: Re-run Phase 5; verify MI principal before role assignments
      checkpoint: Health endpoint responds 200
  reEntrySemantics:
    - All modules use incremental deployment mode (safe to re-run)
    - State preserved between phases via resource group
    - deploy.ps1 accepts -StartFromPhase parameter for re-entry

🚀 Deployment Phases

Phase 1: Foundation (Estimated: 3 min)

Order	Resource	Module	Dependencies
1.1	Resource Group	`az group create` (CLI)	None
1.2	Virtual Network + Subnets + NSGs	`network.bicep`	Resource Group

Gate: Verify RG exists with all 9 tags; VNet has correct subnets.

Phase 2: Observability (Estimated: 2 min)

Order	Resource	Module	Dependencies
2.1	Log Analytics Workspace	`monitoring.bicep`	Phase 1
2.2	Application Insights	`monitoring.bicep`	Phase 1

Gate: Verify Log Analytics workspace ID available for downstream modules.

Phase 3: Security + DNS (Estimated: 3 min)

Order	Resource	Module	Dependencies
3.1	Key Vault	`keyvault.bicep`	Phase 1 (VNet)
3.2	Private DNS Zone (SQL)	`dns.bicep`	Phase 1 (VNet)
3.3	Private DNS Zone (Blob)	`dns.bicep`	Phase 1 (VNet)
3.4	Private DNS Zone (KV)	`dns.bicep`	Phase 1 (VNet)
3.5	Private Endpoint (KV)	`keyvault.bicep`	Phase 1 (VNet), 3.4 (DNS)

Gate: Verify Key Vault accessible via PE; DNS zones linked to VNet.

Phase 4: Data (Estimated: 5 min)

Order	Resource	Module	Dependencies
4.1	Azure SQL Server + Database	`sql.bicep`	Phase 2 (monitoring), Phase 3 (DNS)
4.2	Private Endpoint (SQL)	`sql.bicep`	Phase 1 (VNet), Phase 3 (DNS)
4.3	Storage Account	`storage.bicep`	Phase 2 (monitoring), Phase 3 (DNS)
4.4	Private Endpoint (Storage)	`storage.bicep`	Phase 1 (VNet), Phase 3 (DNS)

Gate: Verify SQL + Storage accessible via private endpoints; public access disabled.

Phase 5: Compute + Budget (Estimated: 4 min)

Order	Resource	Module	Dependencies
5.1	App Service Plan	`compute.bicep`	Phase 1 (VNet)
5.2	App Service	`compute.bicep`	Phase 2 (App Insights), Phase 3 (KV), Phase 4 (SQL, Storage)
5.3	Role Assignments	`compute.bicep`	Phase 5.2 (MI principal ID)
5.4	Autoscale Settings	`compute.bicep`	Phase 5.1 (ASP)
5.5	Budget Alert	`budget.bicep`	Resource Group

Gate: Verify App Service health endpoint responds; MI can access KV and Storage; SQL contained user created for App Service MI.

Total Estimated Deployment Time: ~17 minutes (excluding approval gates)

🔗 Dependency Graph

Dependency Diagram

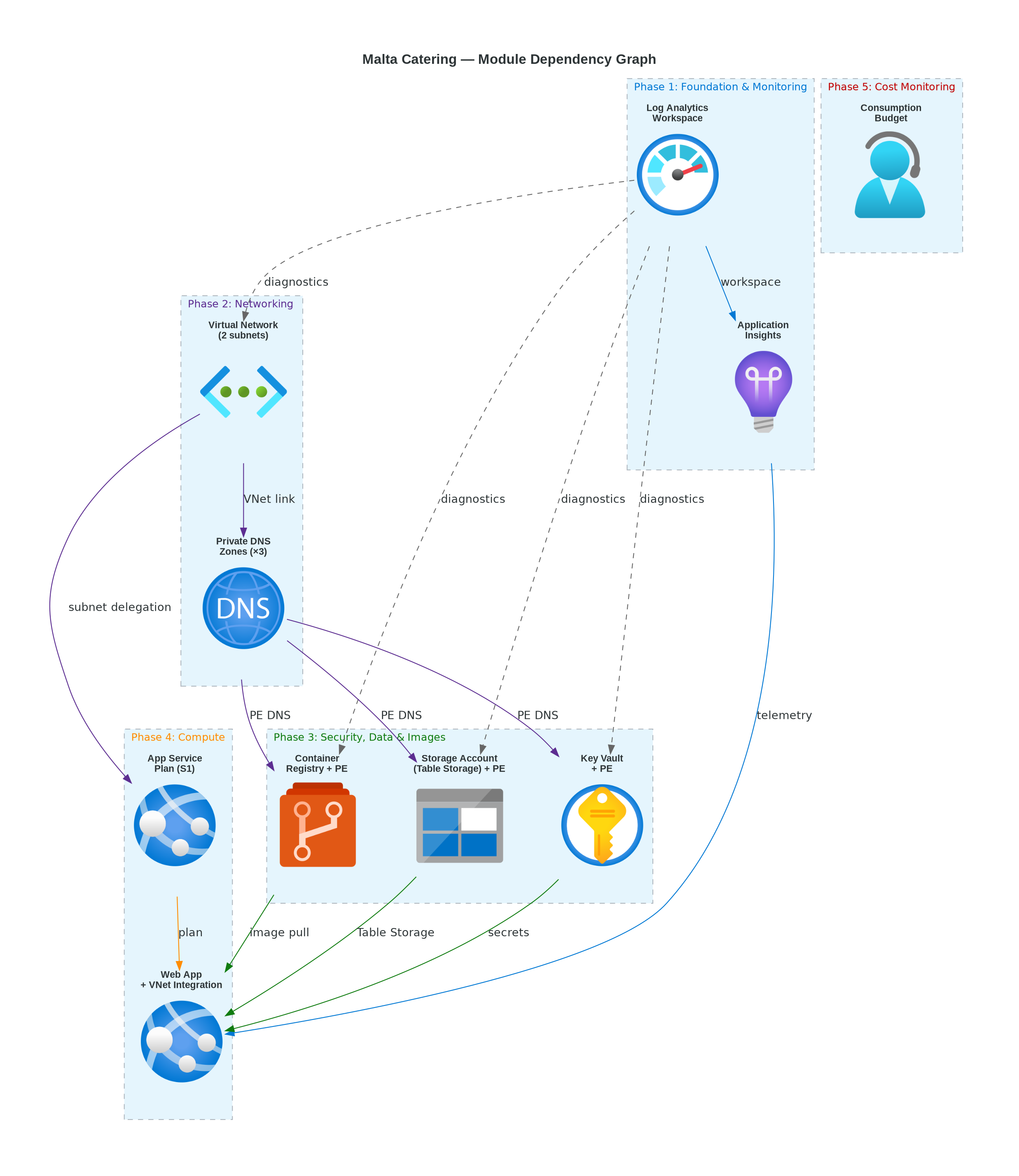

Source: Dependency diagram Excalidraw source

Resource Group
├── Virtual Network (+ Subnets, NSGs)
│   ├── Private DNS Zone (SQL) ─── VNet Link
│   ├── Private DNS Zone (Blob) ── VNet Link
│   ├── Key Vault
│   ├── SQL Server + Database
│   │   └── Private Endpoint (SQL) ── DNS Zone Group
│   ├── Storage Account
│   │   └── Private Endpoint (Blob) ── DNS Zone Group
│   └── App Service Plan
│       └── App Service (VNet Integration)
│           ├── → Key Vault (RBAC: Secrets User)
│           ├── → SQL Database (contained user)
│           └── → Storage (RBAC: Blob Data Contributor)
├── Log Analytics Workspace
│   └── Application Insights
└── Budget Alert

The editable source for this diagram is the Excalidraw file linked above.

🔄 Runtime Flow Diagram

Runtime Flow Diagram

Source: Runtime flow Excalidraw source

User Request
    │
    ▼
App Service (S1, VNet-integrated)
    │
    ├──→ Application Insights (telemetry)
    ├──→ Key Vault (secrets, via MI)
    │
    ├──[Private Endpoint]──→ Azure SQL (orders, users, inventory)
    ├──[Private Endpoint]──→ Storage Account (product images)
    │
    ├──[Outbound REST]──→ Payment Gateway (external)
    ├──[Outbound REST]──→ Maps/Routing API (external)
    └──[Outbound REST]──→ Email/SMS Provider (external)

Log Analytics ◄── Diagnostic Settings (all resources)
Budget Alert ──→ Email notification (CTO)

The editable source for this diagram is the Excalidraw file linked above.

🏷️ Naming Conventions

| Resource | Pattern | Example (Prod) | Example (Dev) | Max Length | | ----------------------- | ------------------------------ | ------------------------------------ | ----------------------------------- | ---------- | --- | ---------- | ---------------- | --------------- | --- | --- | --- | -------- | -------------- | ------------- | --- | --- | ----------------- | ---------- | ---------------- | --------------- | --- | --- | --- | -------- | -------------- | ------------- | --- | --- | | Resource Group | rg-{project}-{env} | rg-nordic-fresh-foods-prod | rg-nordic-fresh-foods-dev | 90 | | Virtual Network | vnet-{project}-{env} | vnet-nordic-fresh-foods-prod | vnet-nordic-fresh-foods-dev | 64 | | Subnet (App) | snet-app | snet-app | snet-app | 80 | | Subnet (Data) | snet-data | snet-data | — | 80 | | Subnet (PE) | snet-pe | snet-pe | — | 80 | | NSG (App) | nsg-app-{env} | nsg-app-prod | nsg-app-dev | 80 | \n | NSG (Data) | nsg-data-{env} | nsg-data-prod | — | 80 | \n | NSG (PE) | nsg-pe-{env} | nsg-pe-prod | — | 80 | ”, “oldString”: ” | NSG (Data) | nsg-data-{env} | nsg-data-prod | — | 80 | \n | NSG (PE) | nsg-pe-{env} | nsg-pe-prod | — | 80 | | Log Analytics | log-{project}-{env} | log-nordic-fresh-foods-prod | log-nordic-fresh-foods-dev | 63 | | App Insights | appi-{project}-{env} | appi-nordic-fresh-foods-prod | appi-nordic-fresh-foods-dev | 255 | | Key Vault | kv-{short}-{env}-{suffix} | kv-nff-prod-a1b2c3 | kv-nff-dev-a1b2c3 | 24 | | SQL Server | sql-{project}-{env} | sql-nordic-fresh-foods-prod | sql-nordic-fresh-foods-dev | 63 | | SQL Database | sqldb-{app}-{env} | sqldb-freshconnect-prod | sqldb-freshconnect-dev | 128 | | Storage Account | st{short}{env}{suffix} | stnffproda1b2c3 | stnffdeva1b2c3 | 24 | | App Service Plan | asp-{project}-{env} | asp-nordic-fresh-foods-prod | asp-nordic-fresh-foods-dev | 60 | | App Service | app-{project}-{env}-{suffix} | app-nordic-fresh-foods-prod-a1b2c3 | app-nordic-fresh-foods-dev-a1b2c3 | 60 | | Private Endpoint (SQL) | pe-sql-{project}-{env} | pe-sql-nordic-fresh-foods-prod | — | 80 | | Private Endpoint (Blob) | pe-st-{project}-{env} | pe-st-nordic-fresh-foods-prod | — | 80 | | Private Endpoint (KV) | pe-kv-{project}-{env} | pe-kv-nordic-fresh-foods-prod | — | 80 | | Budget (Aggregate) | budget-{project} | budget-nordic-fresh-foods | — | 63 | | Budget (Prod) | budget-{project}-{env} | budget-nff-prod | — | 63 | | Budget (Dev) | budget-{project}-{env} | budget-nff-dev | — | 63 |

Unique suffix: uniqueString(resourceGroup().id) — first 6 characters used for length-constrained resources (KV, Storage, App Service).

🔐 Security Configuration

Identity & Access

Service	Identity Type	Role Assignments
App Service	System-assigned MI	Key Vault Secrets User, Storage Blob Data Contributor
SQL Server	Azure AD-only auth	Entra admin group as server admin
Key Vault	N/A (RBAC)	App Service MI → Secrets User
Storage	N/A (RBAC)	App Service MI → Blob Data Contributor

Network Isolation

Service	Public Access (Prod)	Public Access (Dev)	Private Endpoint
Azure SQL	Disabled	Enabled	Yes (prod)
Storage Account	Disabled	Enabled	Yes (prod)
Key Vault	Disabled (bypass: AzureServices¹)	Enabled	Yes (prod, via PE + privatelink.vaultcore.azure.net)

¹ Key Vault bypass: AzureServices: Allows Azure trusted first-party services (e.g., Azure Backup, Azure Resource Manager) to access the vault without traversing the PE. App Service accesses Key Vault via PE + Key Vault References. The trusted-services bypass is intentionally retained for platform operations (backup, policy evaluation) and does not weaken the PCI segmentation boundary because no CHD is stored in Key Vault. | App Service | Public (web-facing) | Public | N/A (VNet integration outbound) |

NSG Coverage: All subnets (snet-app, snet-data, snet-pe) have dedicated NSGs.

[!NOTE] Dev environment uses a single subnet with no private endpoints or NSG isolation. Dev is a non-PCI/non-production-data environment with synthetic test data only. This deviation is an accepted exception from the prod compliance boundary.

Disaster Recovery — RTO/RPO Execution Table

Resource	RTO Target	RPO Target	Backup Source	Restore Method	Validation
App Service + Plan	24h	N/A (stateless)	Bicep templates	Redeploy to germanywestcentral	Health endpoint 200
Azure SQL Database	24h	12h	Geo-replicated backup (default)	`az sql db restore --time`	Query row count
Storage Account (LRS)	24h	12h	AzCopy scheduled export (daily)	Restore from export blob	File count/size check
Key Vault	24h	N/A (soft-delete 90d)	Built-in soft-delete/recover	`az keyvault recover`	Secret access test
VNet + DNS + PEs	24h	N/A (IaC-defined)	Bicep templates	Redeploy to failover region	PE connectivity test
App Insights / Log Analytics	24h	N/A (non-critical)	Workspace data export	Redeploy workspace + restore	Query validation

Failover region: germanywestcentral. Storage LRS does not provide regional redundancy; daily AzCopy export to a GRS backup account is the compensating control for the 12h RPO.

Encryption & TLS

Setting	Value	Applies To
`minTlsVersion`	`'TLS1_2'`	All services
`httpsOnly`	`true`	App Service
`supportsHttpsTrafficOnly`	`true`	Storage Account
`ftpsState`	`FtpsOnly`	App Service
`allowBlobPublicAccess`	`false`	Storage Account
`allowSharedKeyAccess`	`false`	Storage Account

Diagnostic Coverage Matrix

Resource	Category / Logs	Metrics	Owner Module	Notes
Azure SQL Server + DB	SQLSecurityAuditEvents, allLogs	AllMetrics	`sql.bicep`	Via AVM diagnosticSettings
Storage Account	StorageRead, StorageWrite, StorageDelete	Transaction, Capacity	`storage.bicep`	Via AVM diagnosticSettings
App Service	AppServiceHTTPLogs, AppServiceConsoleLogs, AppServiceAppLogs	AllMetrics	`compute.bicep`	Via AVM diagnosticSettings
Key Vault	AuditEvent	AllMetrics	`keyvault.bicep`	Required by MCAPSGov Audit
VNet	VMProtectionAlerts	AllMetrics	`network.bicep`	Network flow analysis
NSG (all 3)	NetworkSecurityGroupEvent, NetworkSecurityGroupRuleCounter	—	`network.bicep`	NSG flow logs
Private Endpoints	—	AllMetrics	`sql.bicep`, `storage.bicep`, `keyvault.bicep`	Metric-only (PE has no log categories)
Activity Log	Administrative, Security, Policy	—	subscription-level	Route via `az monitor diagnostic-settings subscription create` in deploy.ps1

All diagnostic settings route to log-nordic-fresh-foods-{env} (Log Analytics workspace). Activity Log routing is subscription-scoped and configured in the deployment script, not in module Bicep.

SQL Security

Setting	Value
`azureADOnlyAuthentication`	`true` (Policy: Deny)
`minimalTlsVersion`	`'1.2'`
Threat Detection	Enabled via Defender for SQL (`Microsoft.Sql/servers/securityAlertPolicies`)
Defender for SQL	`state: Enabled`, `emailAccountAdmins: true` — satisfies MCAPSGov Audit
Auditing	Enabled via diagnostic settings (SQLSecurityAuditEvents)
Geo-backup	Enabled (default)
PITR Retention	30 days

⏱️ Estimated Implementation Time

Phase	Task	Estimate
Module development	8 Bicep modules + main.bicep	2–3 hours
Parameter files	Prod + Dev .bicepparam	30 min
Deployment script	deploy.ps1 (phased)	30 min
Testing	What-If + lint + build	30 min
Deployment (prod)	5 phases with gates	~17 min
Deployment (dev)	Single phase (no PEs)	~8 min
Total		~4–5 hours

🔒 Approval Gate

[!IMPORTANT] Implementation Plan Review

Metric Value
Resources 19 types (18 AVM + 1 raw Bicep)
AVM Coverage 95% (18/19)
Governance Blockers 2 resolved, 1 documented
Deployment Phases 5 (Foundation → Observability → Security → Data → Compute)
Budget compliance €204/month of €1,000 budget (20%)

Approved — proceed to Bicep Code Generation (Step 5)

Approver:

Date:

Metric	Value
Resources	19 types (18 AVM + 1 raw Bicep)
AVM Coverage	95% (18/19)
Governance Blockers	2 resolved, 1 documented
Deployment Phases	5 (Foundation → Observability → Security → Data → Compute)
Budget compliance	€204/month of €1,000 budget (20%)

References

Document	Link
Azure Verified Modules	AVM Registry
CAF Naming Conventions	Microsoft Learn
Private Endpoint Reference	Microsoft Learn
Bicep Best Practices	Microsoft Learn
Governance Constraints	Governance Constraints

⬅️ Governance Constraints	🏠 Demo Index	➡️ Bicep templates
