Step 7 — As-Built Docs

Documentation Suite

The As-Built agent generates a complete documentation package after successful deployment. Each section below is a separate artifact produced by the agent.

Architecture (As-Built)

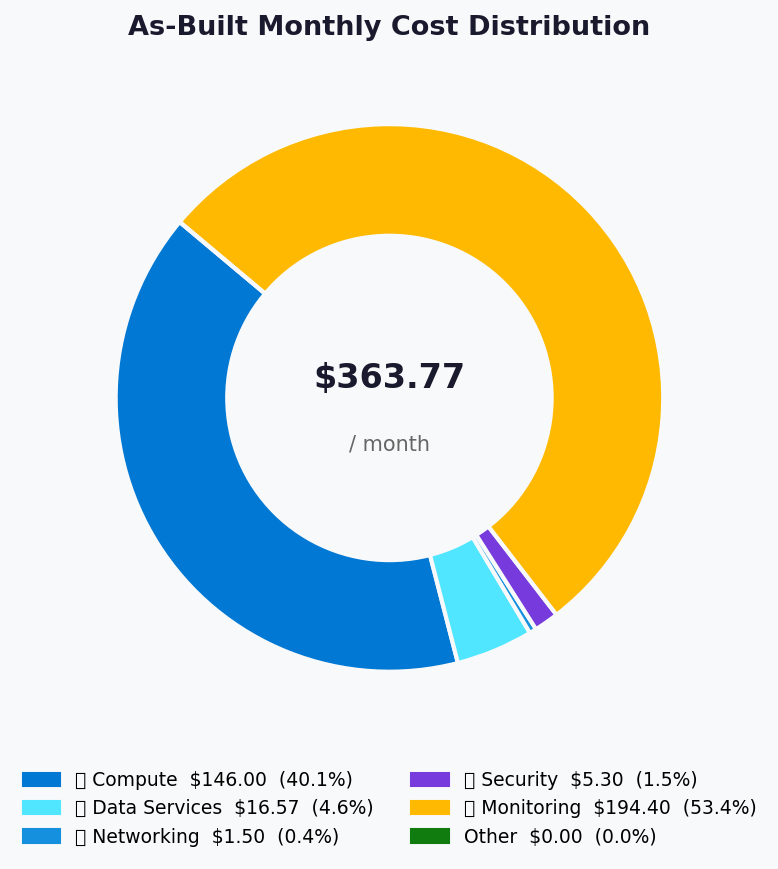

Cost Distribution (Actual)

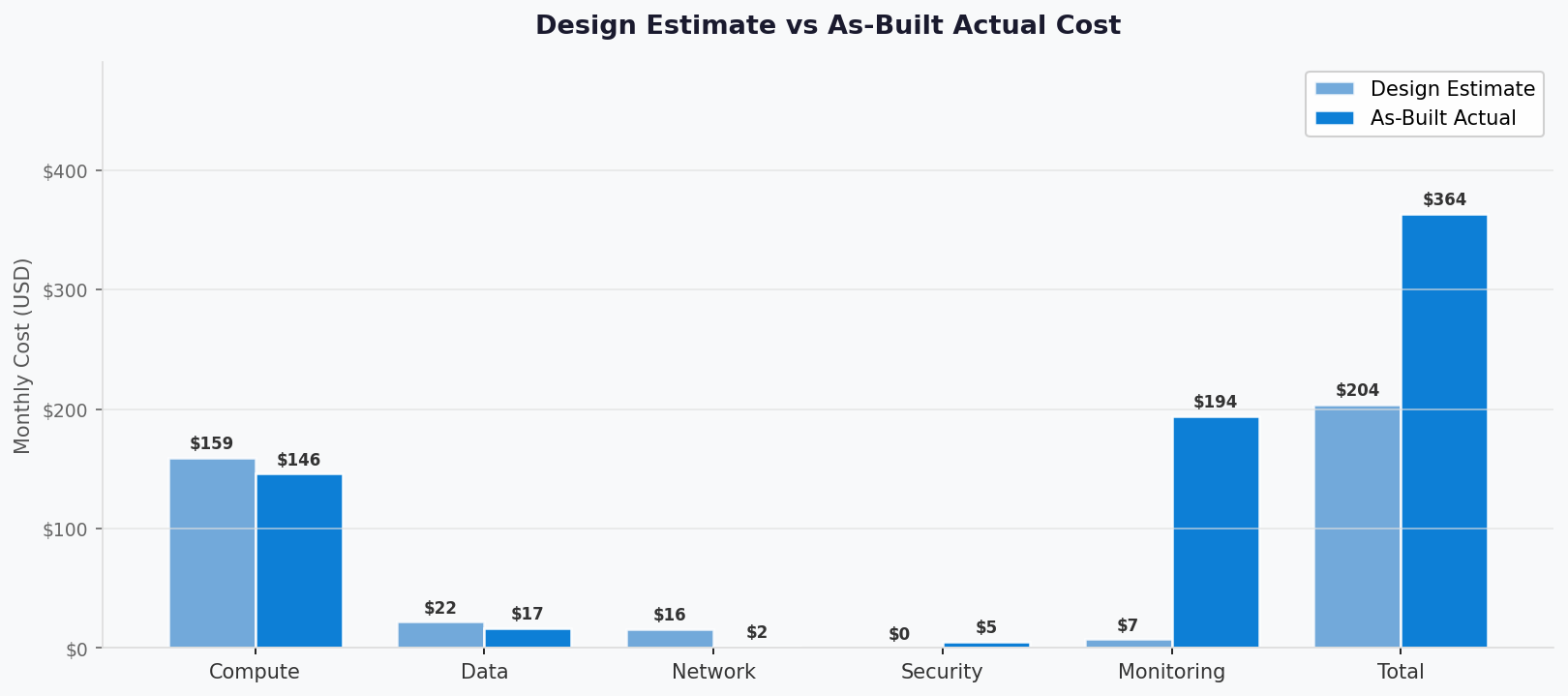

Cost Comparison (Estimated vs Actual)

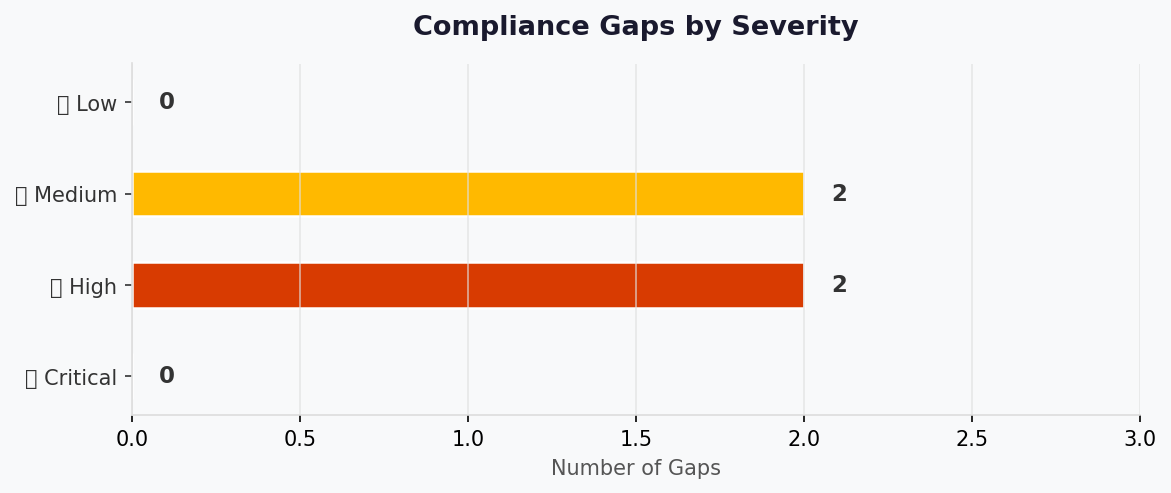

Compliance Gaps

---

Design Document

• 📝 1. Introduction
• 🏛️ 2. Azure Architecture Overview
• 🌐 3. Networking
• 💾 4. Storage
• 💻 5. Compute
• 👤 6. Identity & Access
• 🔐 7. Security & Compliance
• 🔄 8. Backup & Disaster Recovery
• 📊 9. Management & Monitoring
• 📎 10. Appendix
• References

Generated by 08-As-Built agent | 2026-03-11

⬅️ Previous	📑 Index	Next ➡️
Design Document	Demo Index	Operations Runbook

Version: 1.0 Date: 2026-03-11 Author: Generated by Workload Documentation Generator Status: Complete

---

📝 1. Introduction

1.1 Document Purpose

This as-built design document captures the actual Azure deployment state for the FreshConnect MVP workload after successful Step 6 deployment.

Intended Audience:

• Solution Architects
• Operations/SRE Teams
• Security & Compliance Teams
• Development Teams

1.2 Project Overview

Cloud-based farm-to-table ordering platform connecting farms, restaurants, and consumers across Scandinavia. Deployed as a cost-optimized N-tier web application in swedencentral with private data access paths for SQL, Storage, and Key Vault.

Business Objectives:

• Reduce order errors to below 1%
• Enable near-real-time order and inventory processing
• Maintain GDPR and PCI-DSS aligned security controls under startup budget

1.3 Design Objectives

Objective	Target	Implementation
Availability	99.9%	App Service Standard S1 with autoscale min 2, max 3
Performance	p95 API < 500 ms	Co-located App Service + SQL in Sweden Central, S0 SQL baseline
Security	Private data paths, no secret sprawl	Key Vault + Managed Identity + private endpoints + public network disabled on data services
Scalability	3x seasonal traffic	CPU autoscale policy 70% up / 30% down

1.4 Constraints & Assumptions

Constraints:

• Budget ceiling around EUR 1,000/month
• EU data residency and policy-enforced tagging

Assumptions:

• Workload remains single-region for MVP
• Payment provider remains tokenized/redirect model (no CHD in Azure estate)

1.5 Stakeholders

Role	Team	Responsibility
Platform Owner	Nordic Fresh Foods Engineering	Product and platform ownership
Operations	InfraOps / SRE	Runtime operations and incident response
Security & Compliance	Governance + Security	PCI/GDPR control evidence and remediation

---

🏛️ 2. Azure Architecture Overview

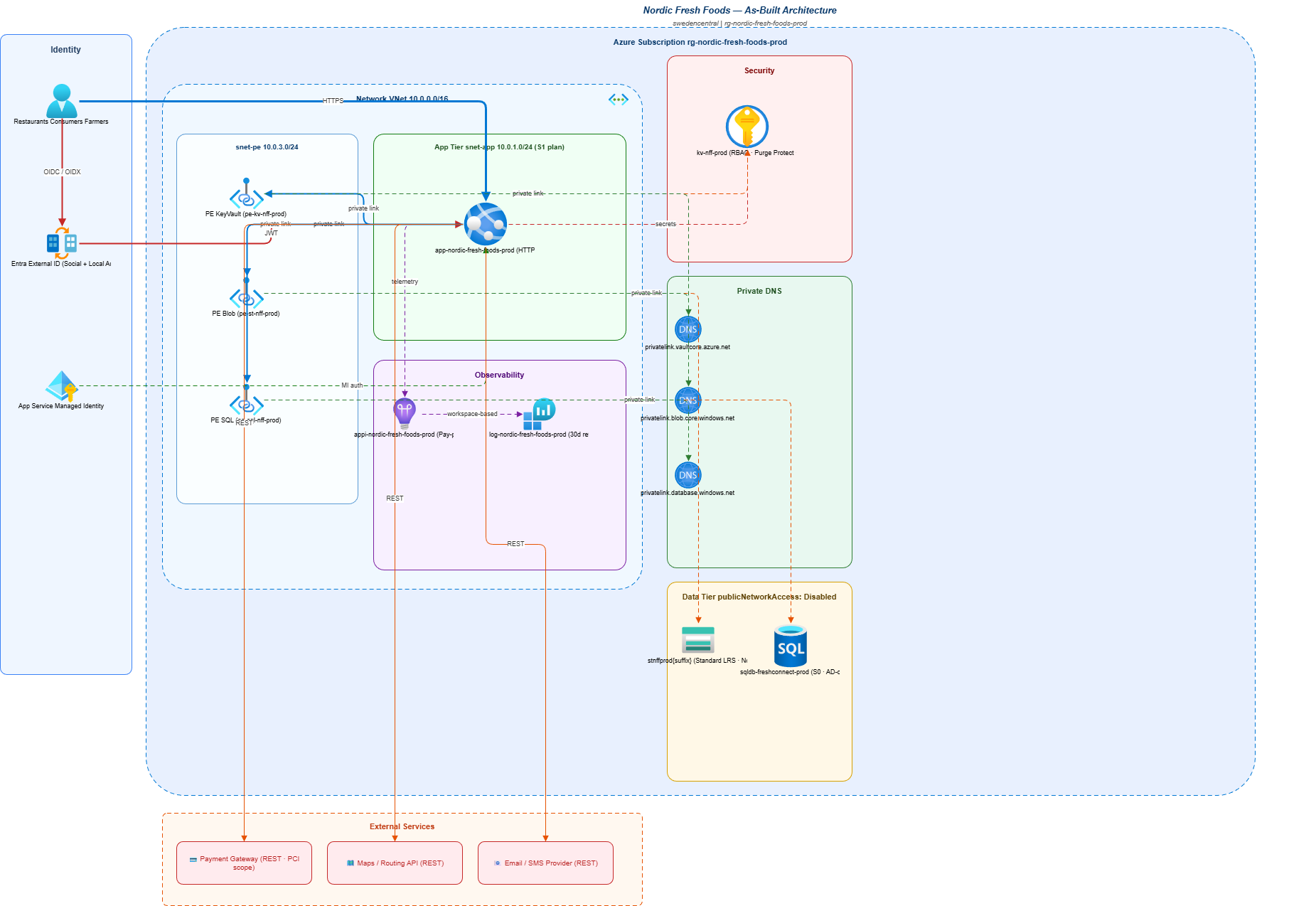

2.1 Architecture Diagram

Source: As-built architecture Excalidraw source

2.2 Resource Summary

Category	Count
Compute	3
Networking	13
Data	6
Security	1

---

🌐 3. Networking

The workload uses a single VNet (10.0.0.0/16) with 3 subnets:

• snet-app (10.0.1.0/24) delegated to Microsoft.Web/serverFarms
• snet-data (10.0.2.0/24) reserved for data tier
• snet-pe (10.0.3.0/24) for private endpoints (SQL, Blob, Key Vault)

Private DNS zones are linked to the VNet:

• privatelink.database.windows.net
• privatelink.blob.core.windows.net
• privatelink.vaultcore.azure.net

Public network access is disabled for SQL Server, Storage Account, and Key Vault. App Service remains public (azurewebsites.net) with HTTPS-only.

---

💾 4. Storage

Storage account stnffprod7jrcjfo3iqckk is deployed as StorageV2 with Standard_LRS.

Key configuration:

• enableHttpsTrafficOnly: true
• minimumTlsVersion: TLS1_2
• allowBlobPublicAccess: false
• allowSharedKeyAccess: false
• publicNetworkAccess: Disabled
• Network default action: Deny

Blob containers listed in deployment summary: assets, product-images.

---

💻 5. Compute

Compute tier consists of:

• App Service Plan asp-nordic-fresh-foods-prod (Linux S1, capacity 2)
• Web App app-nordic-fresh-foods-prod-7jrcjf (state: Running)
• Autoscale autoscale-asp-nordic-fresh-foods-prod (2-3 instances)

Operational compute settings observed:

• httpsOnly: true
• ftpsState: Disabled
• minTlsVersion: 1.2
• System-assigned managed identity enabled
• VNet integration to snet-app

---

👤 6. Identity & Access

Identity model:

• User identity: Microsoft Entra External ID (application-level auth)
• Workload identity: System-assigned managed identity on App Service
• SQL admin: Entra group (nordic-foods-dba), Azure AD-only authentication enabled

RBAC evidence:

• App Service managed identity granted Key Vault Secrets User on Key Vault scope.

---

🔐 7. Security & Compliance

Control	Implementation	Evidence
TLS 1.2+	SQL min TLS 1.2, Storage TLS 1.2, Web App TLS 1.2	az sql server show, az storage account show, az webapp show
HTTPS-only	Web App + Storage	httpsOnly: true, enableHttpsTrafficOnly: true
Managed Identity	App Service system-assigned identity	App Service principal ID 24cd6768-7247-43ac-a1d2-9a7f22000a40
Network isolation	SQL/Storage/KV public access disabled + private endpoints	3 private endpoints + 3 private DNS zones

Framework	Control ID	Status
GDPR	Data residency + access controls	✅
PCI-DSS v4	Segmentation + encryption in transit	✅
Azure Policy	Required tags + SQL AAD-only auth	✅

Open compliance risks:

• ⚠️ Several policy tags (application, costcenter, backup-policy, maint-window, sla, workload) are present but empty values in deployed tags.
• ❌ App Service ingress restrictions are currently allow-all (no WAF/IP restrictions configured).

---

🔄 8. Backup & Disaster Recovery

Current protection posture:

• SQL Database S0 with PITR (local backup redundancy)
• Key Vault soft delete (90 days) and purge protection enabled
• IaC reconstruction path available from infra/bicep/nordic-fresh-foods/

MVP DR design remains single-region with documented failover strategy to germanywestcentral as manual recovery pattern.

---

📊 9. Management & Monitoring

Monitoring stack:

• Log Analytics workspace log-nordic-fresh-foods-prod (PerGB2018, 30-day retention, 2 GB/day cap)
• Application Insights appi-nordic-fresh-foods-prod (workspace-based, 50% sampling)
• Autoscale policy on App Service Plan
• Resource group budget budget-nordic-fresh-foods-prod with actual+forecast notifications

---

📎 10. Appendix

• Subscription: 00858ffc-dded-4f0f-8bbf-e17fff0d47d9
• Resource group: rg-nordic-fresh-foods-prod
• Region: swedencentral
• App endpoint: https://app-nordic-fresh-foods-prod-7jrcjf.azurewebsites.net
• SQL FQDN: sql-nordic-fresh-foods-prod.database.windows.net
• Key Vault URI: https://kv-nff-prod-7jrcjfo3iqck.vault.azure.net/
• Storage blob endpoint: https://stnffprod7jrcjfo3iqckk.blob.core.windows.net/

Architecture	Link
Design-time architecture assessment	Architecture Assessment
Deployment outcomes	Deployment Summary

---

References

[!NOTE] 📚 The following Microsoft Learn resources provide additional guidance.

Topic	Link
Well-Architected Framework	Overview
Azure Architecture Center	Architectures
Security Best Practices	Security Baseline
Networking Best Practices	Network Security
Backup Best Practices	Azure Backup
Monitoring Overview	Azure Monitor

---

Design document generated from deployed infrastructure artifacts.

---

⬅️ Design Document	🏠 Demo Index	➡️ Operations Runbook

---

Operations Runbook

• ⚡ Quick Reference
• 📋 1. Daily Operations
• 🚨 2. Incident Response
• 🔧 3. Common Procedures
• 🕐 4. Maintenance Windows
• 📞 5. Contacts & Escalation
• 📝 6. Change Log
• References

Generated by 08-As-Built agent | 2026-03-11

⬅️ Previous	📑 Index	Next ➡️
Design Document	Demo Index	Resource Inventory

Version: 1.0 Date: 2026-03-11 Environment: prod Region: swedencentral

---

⚡ Quick Reference

Item	Value
Primary Region	swedencentral
Resource Group	rg-nordic-fresh-foods-prod
Support Contact	technical-contact tag: sam@altman.com
Escalation Path	L1 On-call -> L2 Team Lead -> L3 Service Owner

Critical Resources

Resource	Name	Resource Group	Severity
App Service	app-nordic-fresh-foods-prod-7jrcjf	rg-nordic-fresh-foods-prod	🔴 P1
SQL Database	sqldb-freshconnect-prod	rg-nordic-fresh-foods-prod	🔴 P1
Key Vault	kv-nff-prod-7jrcjfo3iqck	rg-nordic-fresh-foods-prod	🔴 P1
Storage Account	stnffprod7jrcjfo3iqckk	rg-nordic-fresh-foods-prod	🟠 P2
Log Analytics	log-nordic-fresh-foods-prod	rg-nordic-fresh-foods-prod	🟢 P3

---

📋 1. Daily Operations

1.1 Health Checks

Morning Health Check:

1. ✅ Verify App Service is Running and responding on default hostname.
2. ✅ Verify SQL server state is Ready and database is Online.
3. ✅ Verify Key Vault/Storage/SQL private endpoints remain Approved.

KQL Query - System Health Overview:

AppRequests
| where TimeGenerated > ago(1h)
| summarize Requests=count(), Failed=countif(Success == false), P95=percentile(DurationMs, 95)

1.2 Log Review

Priority Logs to Review:

Log Source	Query Focus	Action Threshold
Application Insights	Failed requests, dependency failures	>2% failures over 15 min
Log Analytics	Platform warnings/errors	Any Critical/Sev0 event
SQL diagnostics	Connection/auth anomalies	Repeated auth/network failures

---

🚨 2. Incident Response

2.1 Severity Definitions

Severity	Definition	Response Time
🔴 P1	Customer-impacting outage or data-path failure	15 minutes
🟠 P2	Major feature degradation with workaround	1 hour
🟢 P3	Non-critical issue or maintenance defect	1 business day

Incident Response Flow

flowchart LR
    D["🔍 Detect"] --> T["🎯 Triage"]
    T --> E["⚠️ Escalate"]
    E --> R["🛠️ Resolve"]
    R --> P["📝 Postmortem"]
    style D fill:#D83B01,color:#fff
    style R fill:#107C10,color:#fff

2.2 Runbooks by Alert

Alert	Runbook	Owner
App service unavailable	Restart app, inspect platform logs, validate VNet integration	App operations
SQL connectivity failures	Validate PE/DNS, test SQL endpoint, review auth	Data operations
Secret resolution failures	Check MI role assignment and Key Vault endpoint/health	Security operations
Budget threshold breach	Review cost drivers and scale settings	Platform owner

---

🔧 3. Common Procedures

3.1 Restart Services

az webapp restart \
  --resource-group rg-nordic-fresh-foods-prod \
  --name app-nordic-fresh-foods-prod-7jrcjf

3.2 Scale Resources

# Manual override scale to 3 workers
az appservice plan update \
  --resource-group rg-nordic-fresh-foods-prod \
  --name asp-nordic-fresh-foods-prod \
  --number-of-workers 3

---

🕐 4. Maintenance Windows

Task	Schedule	Duration
Platform patch + app updates	Sunday 02:00-06:00 UTC	2-4 hours
DR and restore validation	Quarterly	1 day

gantt
    title Maintenance Schedule
    dateFormat YYYY-MM-DD
    section Patching
        OS Patching       :a1, 2026-04-06, 1d
        App Updates       :a2, 2026-05-04, 1d
    section DR Testing
        Failover Test     :b1, 2026-06-15, 1d

[!TIP] 💡 Apply changes during low-order windows and preserve rollback plan for SQL schema or config updates.

---

📞 5. Contacts & Escalation

Role	Contact	Phone	On-Call Rotation
L1 On-call Engineer	Platform on-call	N/A	Weekly
L2 Team Lead	Engineering lead	N/A	Weekly
L3 Service Owner	Product/platform owner	N/A	Monthly

Escalation Path

flowchart LR
    L1["🟢 L1: On-Call Engineer"] --> L2["🟠 L2: Team Lead"]
    L2 --> L3["🔴 L3: Service Owner"]
    L3 --> MGMT["⚠️ Management"]

---

📝 6. Change Log

Date	Change	Author
2026-03-11	Initial as-built operations runbook created from deployed state	08-As-Built agent

---

References

[!NOTE] 📚 The following Microsoft Learn resources provide operational guidance.

Topic	Link
Azure Monitor Alerts	Alerting Best Practices
Log Analytics Queries	KQL Reference
Incident Management	Azure Status
Service Health	Azure Service Health

---

Operations runbook generated from infrastructure artifacts.

---

⬅️ Design Document	🏠 Demo Index	➡️ Resource Inventory

---

Backup & DR Plan

• 📋 Executive Summary
• 🎯 1. Recovery Objectives
• 💾 2. Backup Strategy
• 🌍 3. Disaster Recovery Procedures
• 🧪 4. Testing Schedule
• 📢 5. Communication Plan
• 👥 6. Roles and Responsibilities
• 🔗 7. Dependencies
• 📖 8. Recovery Runbooks
• 📎 9. Appendix
• References

Generated by 08-As-Built agent | 2026-03-11

⬅️ Previous	📑 Index	Next ➡️
Resource Inventory	Demo Index	Compliance Matrix

Generated: 2026-03-11 Version: 1.0 Environment: prod Primary Region: swedencentral Secondary Region: germanywestcentral (planned failover target)

---

📋 Executive Summary

[!IMPORTANT] This document defines the backup strategy and disaster recovery procedures for nordic-fresh-foods.

Metric	Current	Target
RPO	SQL: service-managed PITR window; app data: daily operational backup pattern	12 hours
RTO	Manual failover + redeploy strategy	24 hours
Availability	Single-region with autoscale	99.9%

---

🎯 1. Recovery Objectives

1.1 Recovery Time Objective (RTO)

Tier	RTO Target	Services
🔴 Critical	4-8 hours	App Service, SQL database, Key Vault
🟠 Important	8-16 hours	Storage assets, DNS private resolution
🟢 Standard	24 hours	Monitoring, non-critical integrations

1.2 Recovery Point Objective (RPO)

Data Type	RPO Target	Backup Strategy
Transactional data (SQL)	<= 12 hours	SQL automated backups + PITR
Blob assets	<= 24 hours	Export/snapshot operational process
Secrets/config	<= 24 hours	Key Vault recoverable soft-delete + IaC rehydration

gantt
    title RPO / RTO Targets by Tier
    dateFormat HH:mm
    axisFormat %H:%M
    section Critical
        RPO :crit, rpo1, 00:00, 12h
        RTO :crit, rto1, 00:00, 8h
    section Important
        RPO :rpo2, 00:00, 24h
        RTO :rto2, 00:00, 16h
    section Standard
        RPO :rpo3, 00:00, 24h
        RTO :rto3, 00:00, 24h

---

💾 2. Backup Strategy

Setting	Configuration
Backup Type	Platform-managed automated backups
Retention (PITR)	Service default for S0 tier
Long-Term Retention	Not configured in current deployment
Geo-Redundancy	Not enabled (local backup redundancy)

Point-in-Time Restore Command:

az sql db restore \
  --resource-group rg-nordic-fresh-foods-prod \
  --server sql-nordic-fresh-foods-prod \
  --name sqldb-freshconnect-prod \
  --dest-name sqldb-freshconnect-prod-restored \
  --time "2026-03-11T17:00:00Z"

Setting	Configuration
Soft Delete	Enabled
Purge Protection	Enabled

---

🌍 3. Disaster Recovery Procedures

3.1 Failover Procedure

1. Confirm incident severity and regional impact in Azure Service Health.
2. Restore SQL database to failover region (manual geo-restore or latest available backup path).
3. Re-deploy stack from infra/bicep/nordic-fresh-foods/ with failover region parameters.
4. Rehydrate Key Vault secrets and validate managed identity permissions.
5. Update DNS/app endpoint routing to failover deployment.
6. Execute smoke tests and release service.

3.2 Failback Procedure

1. Validate primary region recovery.
2. Synchronize latest data back to primary environment.
3. Re-deploy primary resources from IaC.
4. Switch traffic back during approved maintenance window.
5. Run post-failback validation and close incident.

---

🧪 4. Testing Schedule

Test Type	Frequency	Last Test	Next Test
SQL PITR restore test	Quarterly	Not recorded	2026-Q2
Private endpoint + DNS validation	Quarterly	Not recorded	2026-Q2
Full tabletop DR exercise	Semi-annual	Not recorded	2026-Q3

gantt
    title DR Testing Schedule
    dateFormat YYYY-MM-DD
    section Backup Validation
        SQL restore validation  :a1, 2026-04-15, 1d
    section Failover
        Region failover drill   :b1, 2026-06-15, 1d
    section Full DR
        Full DR exercise        :c1, 2026-09-15, 2d

---

📢 5. Communication Plan

Audience	Channel	Template
Engineering on-call	Teams + Pager	P1/P2 incident template
Product stakeholders	Teams + Email	Service disruption notice
Compliance contacts	Email	Security/compliance incident template

---

👥 6. Roles and Responsibilities

Role	Team	Responsibility
Incident Commander	SRE lead	Owns incident bridge, decisions, and communications
Database Recovery Lead	Data platform	Executes SQL restore/failover tasks
Application Recovery Lead	App engineering	Re-deploys and validates application tier
Security Lead	Security/compliance	Verifies IAM, key access, and audit integrity

---

🔗 7. Dependencies

Dependency	Impact	Mitigation
Azure SQL restore availability	Critical path for transactional recovery	Pre-tested restore runbooks and periodic drills
Private DNS resolution	App-to-data connectivity	Validate DNS links in every DR test
External payment/maps/email APIs	Functional degradation if unavailable	Circuit breaker + degraded mode behavior

---

📖 8. Recovery Runbooks

Scenario	Runbook	Owner
SQL data corruption	SQL PITR and app rebind	Database Recovery Lead
Region outage	Secondary region redeploy + traffic switch	Incident Commander
Secret compromise	Key rotation + app restart + audit	Security Lead

Trigger: Data corruption or accidental destructive write. Estimated Duration: 1-3 hours.

1. Identify last known good restore point.
2. Run az sql db restore to a new database name.
3. Validate schema/data and update application connection reference.
4. Restart app and run transactional smoke tests.

Validation:

az sql db show \
  --resource-group rg-nordic-fresh-foods-prod \
  --server sql-nordic-fresh-foods-prod \
  --name sqldb-freshconnect-prod

---

📎 9. Appendix

• App hostname: app-nordic-fresh-foods-prod-7jrcjf.azurewebsites.net
• SQL FQDN: sql-nordic-fresh-foods-prod.database.windows.net
• Key Vault URI: https://kv-nff-prod-7jrcjfo3iqck.vault.azure.net/
• Storage endpoint: https://stnffprod7jrcjfo3iqckk.blob.core.windows.net/

---

References

[!NOTE] 📚 The following Microsoft Learn resources provide DR guidance.

Topic	Link
Azure Backup Overview	Backup Overview
Backup Best Practices	Best Practices
RTO/RPO Guidance	Reliability Metrics
Site Recovery	ASR Overview
Business Continuity	DR Planning

---

Backup and DR plan generated from infrastructure artifacts.

---

⬅️ Resource Inventory	🏠 Demo Index	➡️ Compliance Matrix

---

Compliance Matrix

• 📋 Executive Summary
• 🗺️ 1. Control Mapping
• 🔍 2. Gap Analysis
• 📁 3. Evidence Collection
• 📝 4. Audit Trail
• 🔧 5. Remediation Tracker
• 📎 6. Appendix
• References

Generated by 08-As-Built agent | 2026-03-11

⬅️ Previous	📑 Index	Next ➡️
Backup & DR Plan	Demo Index	Cost Estimate

Generated: 2026-03-11 Version: 1.0 Environment: prod Primary Compliance Framework: GDPR + PCI-DSS v4 + Azure Policy baseline

---

📋 Executive Summary

[!IMPORTANT] This compliance matrix maps the nordic-fresh-foods security controls to GDPR and PCI-DSS-aligned requirements.

Compliance Area	Coverage	Status
Network Security	88%	⚠️
Data Protection	94%	✅
Access Control	90%	✅
Monitoring & Audit	82%	⚠️
Incident Response	78%	⚠️
Overall	86%	⚠️

---

🗺️ 1. Control Mapping

Requirement 1: Data protection and secure transport

Control	Requirement	Implementation	Status
TLS enforcement	Encrypt data in transit	SQL min TLS 1.2, Storage TLS1_2, App Service TLS 1.2	✅
Public exposure minimization	Restrict direct data service access	SQL/Storage/KV publicNetworkAccess: Disabled, private endpoints configured	✅
Secret handling	Centralized secret management and no hardcoded keys	Key Vault Premium + App Service managed identity + KV RBAC role assignment	✅

Evidence Location: Azure CLI evidence captured during Step 7 generation.

Evidence Item	Type	Date Collected
az sql server show output	CLI JSON	2026-03-11
az storage account show output	CLI JSON	2026-03-11
az keyvault show output	CLI JSON	2026-03-11

Requirement 2: Identity and least privilege

Control	Requirement	Implementation	Status
SQL AAD-only auth	No SQL local auth for admin	azureAdOnlyAuthentication: true on SQL server	✅
Workload identity	Service-to-service auth without shared secrets	App Service system-assigned managed identity	✅
Key Vault data-plane role	Least privilege secret access	Key Vault Secrets User scoped to vault	✅

Evidence Location: Azure RBAC and SQL server properties.

Evidence Item	Type	Date Collected
az role assignment list --scope <kv-id>	CLI JSON	2026-03-11
SQL administrators block	CLI JSON	2026-03-11

Requirement 3: Governance and policy compliance

Control	Requirement	Implementation	Status
Mandatory tags	Policy-required tags populated	Required keys present but several values are empty	⚠️
Budget controls	Cost governance and notifications	RG monthly budget with actual/forecast thresholds	✅
Monitoring baseline	Centralized logs and telemetry	Log Analytics + Application Insights	✅

Evidence Location: Resource tags, budget resource, monitoring resources.

Evidence Item	Type	Date Collected
az resource list tags snapshot	CLI JSON	2026-03-11
az consumption budget list --resource-group	CLI JSON	2026-03-11
Workspace/component show outputs	CLI JSON	2026-03-11

---

🔍 2. Gap Analysis

Gap	Severity	Risk Level	Remediation	Timeline
Empty policy tag values (application, costcenter, sla, backup-policy, maint-window, workload)	🟠	Medium	Update Bicep parameters and redeploy tags	2 weeks
App Service ingress and SCM rules allow all (Allow all)	🟠	Medium	Add IP restrictions/WAF/Front Door controls	4 weeks
Log Analytics public query/ingestion still enabled	🟡	Medium	Evaluate Private Link and disable public access as feasible	4-6 weeks
DR test evidence not yet recorded	🟡	Low	Execute and capture quarterly restore/failover drills	1 quarter
App Service lacks WAF/Front Door protection	🟠	High	❌ Deploy WAF or Front Door before production traffic	Pre-prod

---

📁 3. Evidence Collection

Control	Evidence Type	Location	Last Collected
SQL AAD-only auth	CLI output	Step 7 command capture	2026-03-11
Storage hardened config	CLI output	Step 7 command capture	2026-03-11
Key Vault security baseline	CLI output	Step 7 command capture	2026-03-11
Autoscale and budget controls	CLI output	Step 7 command capture	2026-03-11
Private networking controls	CLI output	Step 7 command capture	2026-03-11

---

📝 4. Audit Trail

Date	Auditor	Finding	Status	Commit
2026-03-11	08-As-Built agent	As-built compliance evidence consolidated	Complete	N/A
2026-03-11	Deploy workflow	Phase 4 SQL configuration mismatch fixed (zoneRedundant: false)	Complete	N/A

---

🔧 5. Remediation Tracker

Finding	Owner	Due Date	Status
Populate all policy-required tag values	Platform engineering	2026-03-25	⬜ Todo
Lock down App Service ingress/SCM rules	Security engineering	2026-04-08	⬜ Todo
Assess and harden Log Analytics public access	Operations	2026-04-15	⬜ Todo
Run and record DR drills	SRE lead	2026-06-30	⬜ Todo

---

📎 6. Appendix

A. Compliance Framework Reference

• GDPR (EU data residency and data protection controls)
• PCI-DSS v4 (segmentation, encryption, access management)
• Azure Policy governance constraints from 04-governance-constraints.md

B. Azure Security Baseline Mapping

• HTTPS-only and TLS 1.2 controls applied on web/data services
• Data services isolated via private endpoints and public network disablement
• Managed identity used for workload-to-secret access
• Centralized monitoring via Log Analytics + App Insights

---

References

flowchart LR
    A["Control"] --> B{"Implemented?"}
    B -- Yes --> C{"Evidence Collected?"}
    B -- No --> D["❌ Gap"]
    C -- Yes --> E["✅ Compliant"]
    C -- No --> F["⚠️ Pending Evidence"]
    D --> G["Remediation Tracker"]
    style E fill:#107C10,color:#fff
    style D fill:#D83B01,color:#fff
    style F fill:#FFB900,color:#000

[!NOTE] 📚 The following Microsoft Learn resources provide compliance guidance.

Topic	Link
Microsoft Cloud Security Benchmark	MCSB Overview
Azure Compliance Offerings	Compliance
Azure Policy	Policy Overview
Regulatory Compliance	Built-in Policies

---

Compliance matrix generated from infrastructure artifacts.

---

⬅️ Backup & DR Plan	🏠 Demo Index	➡️ Cost Estimate

---

Resource Inventory

• 📊 Summary
• 📦 Resource Listing
• References

Generated by 08-As-Built agent | 2026-03-11

⬅️ Previous	📑 Index	Next ➡️
Operations Runbook	Demo Index	Backup & DR Plan

Generated: 2026-03-11 Source: Azure deployed state + Bicep artifacts Environment: prod Region: swedencentral

---

📊 Summary

Category	Count
Total Resources	24
💻 Compute	3
💾 Data Services	6
🌐 Networking	13
📨 Messaging	0
🔐 Security	1
📊 Monitoring	2

[!NOTE] Resource count includes governance/ops resources (budget and autoscale), private networking artifacts (private endpoints + NICs + private DNS zones), and SQL master system database.

---

📦 Resource Listing

💻 Compute Resources

Name	Type	SKU	Location	Monthly Cost	Purpose	Portal
asp-nordic-fresh-foods-prod	Microsoft.Web/serverFarms	S1 (capacity 2)	swedencentral	$146.00	Linux App Service Plan for web/API workload	View
app-nordic-fresh-foods-prod-7jrcjf	Microsoft.Web/sites	Standard (on S1 plan)	swedencentral	$0.00 (plan-backed)	FreshConnect application endpoint	View
autoscale-asp-nordic-fresh-foods-prod	Microsoft.Insights/autoscalesettings	N/A	swedencentral	$0.00	Autoscale policy for App Service Plan (min 2, max 3)	View

💾 Data Services

Name	Type	SKU	Configuration	Location	Monthly Cost
sql-nordic-fresh-foods-prod	Microsoft.Sql/servers	v12.0	Azure AD-only auth, public network disabled, TLS 1.2	swedencentral	$0.00
sqldb-freshconnect-prod	Microsoft.Sql/servers/databases	S0 (Standard, 10 DTU)	Max size 250 GB, zoneRedundant false, status Online	swedencentral	$14.71
master	Microsoft.Sql/servers/databases	System	System database	swedencentral	Included
stnffprod7jrcjfo3iqckk	Microsoft.Storage/storageAccounts	Standard_LRS	HTTPS-only, public network disabled, no shared key auth, no public blob access	swedencentral	$1.86 (assumed 50 GB hot + txns)
assets	Blob container	N/A	Documented in deployment summary; data-plane read blocked by network rules	swedencentral	Included
product-images	Blob container	N/A	Documented in deployment summary; data-plane read blocked by network rules	swedencentral	Included

🌐 Networking Resources

Name	Type	Configuration	Location
vnet-nordic-fresh-foods-prod	Microsoft.Network/virtualNetworks	10.0.0.0/16 with snet-app (10.0.1.0/24), snet-data (10.0.2.0/24), snet-pe (10.0.3.0/24)	swedencentral
nsg-nordic-fresh-foods-app-prod	Microsoft.Network/networkSecurityGroups	NSG bound to snet-app	swedencentral
nsg-nordic-fresh-foods-data-prod	Microsoft.Network/networkSecurityGroups	NSG bound to snet-data	swedencentral
nsg-nordic-fresh-foods-pe-prod	Microsoft.Network/networkSecurityGroups	NSG bound to snet-pe	swedencentral
pep-sql-nordic-fresh-foods-prod-sqlServer-0	Microsoft.Network/privateEndpoints	SQL private endpoint	swedencentral
pep-stnffprod7jrcjfo3iqckk-blob-0	Microsoft.Network/privateEndpoints	Blob private endpoint	swedencentral
pep-kv-nff-prod-7jrcjfo3iqck-vault-0	Microsoft.Network/privateEndpoints	Key Vault private endpoint	swedencentral
pep-sql-…nic…	Microsoft.Network/networkInterfaces	NIC for SQL PE	swedencentral
pep-st…nic…	Microsoft.Network/networkInterfaces	NIC for Blob PE	swedencentral
pep-kv-…nic…	Microsoft.Network/networkInterfaces	NIC for KV PE	swedencentral
privatelink.database.windows.net	Microsoft.Network/privateDnsZones	SQL private DNS zone with VNet link	global
privatelink.blob.core.windows.net	Microsoft.Network/privateDnsZones	Blob private DNS zone with VNet link	global
privatelink.vaultcore.azure.net	Microsoft.Network/privateDnsZones	Key Vault private DNS zone with VNet link	global

📨 Messaging Resources

Name	Type	SKU	Configuration	Location
None	N/A	N/A	Messaging services were not deployed in this workload	N/A

🔐 Security Resources

Name	Type	Configuration	Location
kv-nff-prod-7jrcjfo3iqck	Microsoft.KeyVault/vaults	Premium, RBAC enabled, soft delete 90 days, purge protection enabled, public network disabled	swedencentral

📊 Monitoring Resources

Name	Type	Retention	Location
log-nordic-fresh-foods-prod	Microsoft.OperationalInsights/workspaces	30 days	swedencentral
appi-nordic-fresh-foods-prod	Microsoft.Insights/components	365 days	swedencentral

💰 Governance Resources

Name	Type	Configuration	Location
budget-nordic-fresh-foods-prod	Microsoft.Consumption/budgets	USD 800 monthly budget, actual 90% + forecast 80/100/120% notifications	rg scope

---

pie showData
    title Resource Distribution by Category
    "💻 Compute" : 3
    "💾 Data" : 6
    "🌐 Networking" : 13
    "📨 Messaging" : 0
    "🔐 Security" : 1
    "📊 Monitoring" : 2

---

References

Topic	Link
Azure Resource Types	Resource Providers
Naming Conventions	CAF Naming
Pricing Calculator	Azure Pricing

---

Resource inventory generated from deployed resources and Bicep templates.

---

⬅️ Operations Runbook	🏠 Demo Index	➡️ Backup & DR Plan

---

Cost Estimate

• 💵 Cost At-a-Glance
• ✅ Decision Summary
• 🔁 Requirements → Cost Mapping
• 📊 Top 5 Cost Drivers
• 🏛️ Architecture Overview
• 🧾 What We Are Not Paying For (Yet)
• ⚠️ Cost Risk Indicators
• 🎯 Quick Decision Matrix
• 💰 Savings Opportunities
• 🧾 Detailed Cost Breakdown
• References

Generated by 08-As-Built agent | 2026-03-11

⬅️ Previous	📑 Index	Next ➡️
Compliance Matrix	Demo Index	—

Generated: 2026-03-11 Source: Deployed resources + cost-estimate-subagent MCP pricing response Region: swedencentral Environment: Production MCP Tools Used: azure_bulk_estimate, azure_cost_estimate, azure_price_search, azure_sku_discovery (via subagent) IaC Reference: Bicep templates repository folder

💵 Cost At-a-Glance

Monthly Total: $363.77 | Annual: $4,365.24

Budget: $800/month (resource-group budget) | Utilization: 45.47% ($363.77 of $800)

Status	Indicator
Cost Trend	➡️ Stable (monitoring-heavy profile)
Savings Available	💰 Potential with monitoring ingestion tuning
Compliance	✅ GDPR and PCI-DSS aligned controls deployed

✅ Decision Summary

• ✅ Implemented: App Service S1 (2 instances), SQL S0, private endpoints (3), Key Vault Premium, Storage LRS, monitoring stack, budget alerts.
• ⏳ Deferred: WAF/Application Gateway, DDoS Standard, multi-region active-passive architecture.
• 🔁 Redesign Trigger: Sustained 3-instance runtime plus high telemetry ingestion pushes total toward budget threshold.

Confidence: Medium | Expected Variance: +/-20% (telemetry ingestion and unresolved PE meter are primary variables)

Design vs As-Built Summary

Metric	Design Estimate	As-Built	Variance	Status
Monthly Estimate	$203.97	$363.77	+$159.80	⚠️
Annual Estimate	$2,447.64	$4,365.24	+$1,917.60	⚠️

🔁 Requirements → Cost Mapping

Requirement	Architecture Decision	Cost Impact	Mandatory
SLA 99.9%	S1 App Service with min 2 instances	+$146.00/month	Yes
GDPR/PCI network isolation	3 Private Endpoints + 3 Private DNS zones	+$1.50/month in current priced output (PE unresolved)	Yes
Relational transaction store	SQL S0 single database	+$14.71/month	Yes
Observability baseline	Log Analytics + App Insights	+$194.40/month	Yes

📊 Top 5 Cost Drivers

Rank	Resource	Monthly Cost	% of Total	Trend	Optimization
1️⃣	Log Analytics ingestion	$179.40	49.32%	⬆️	Reduce ingestion volume and noisy logs
2️⃣	App Service Plan S1 x2	$146.00	40.13%	➡️	Validate sustained capacity requirement
3️⃣	Application Insights	$15.00	4.12%	➡️	Sampling/retention tuning
4️⃣	SQL Database S0	$14.71	4.04%	➡️	Keep S0 until sustained pressure
5️⃣	Key Vault Premium	$5.30	1.46%	➡️	Right-size ops and vault SKU if allowable

💡 Quick Win: Prioritize telemetry filtering and ingestion caps; this has the largest single cost-reduction potential.

1️⃣ Monitoring Stack

Aspect	Detail
Current Inputs	Log Analytics estimated at 2 GB/day and App Insights workspace-based
Monthly Cost	$194.40
Optimization	Refine data collection and reduce high-cardinality telemetry
Potential Savings	Significant, workload-dependent

🏛️ Architecture Overview

Cost Distribution

Category	Monthly Cost (USD)	Share
💻 Compute	146.00	40.13%
💾 Data Services	16.57	4.56%
🌐 Networking	1.50	0.41%
🔐 Security	5.30	1.46%
📊 Monitoring	194.40	53.45%
Other	0.00	0.00%

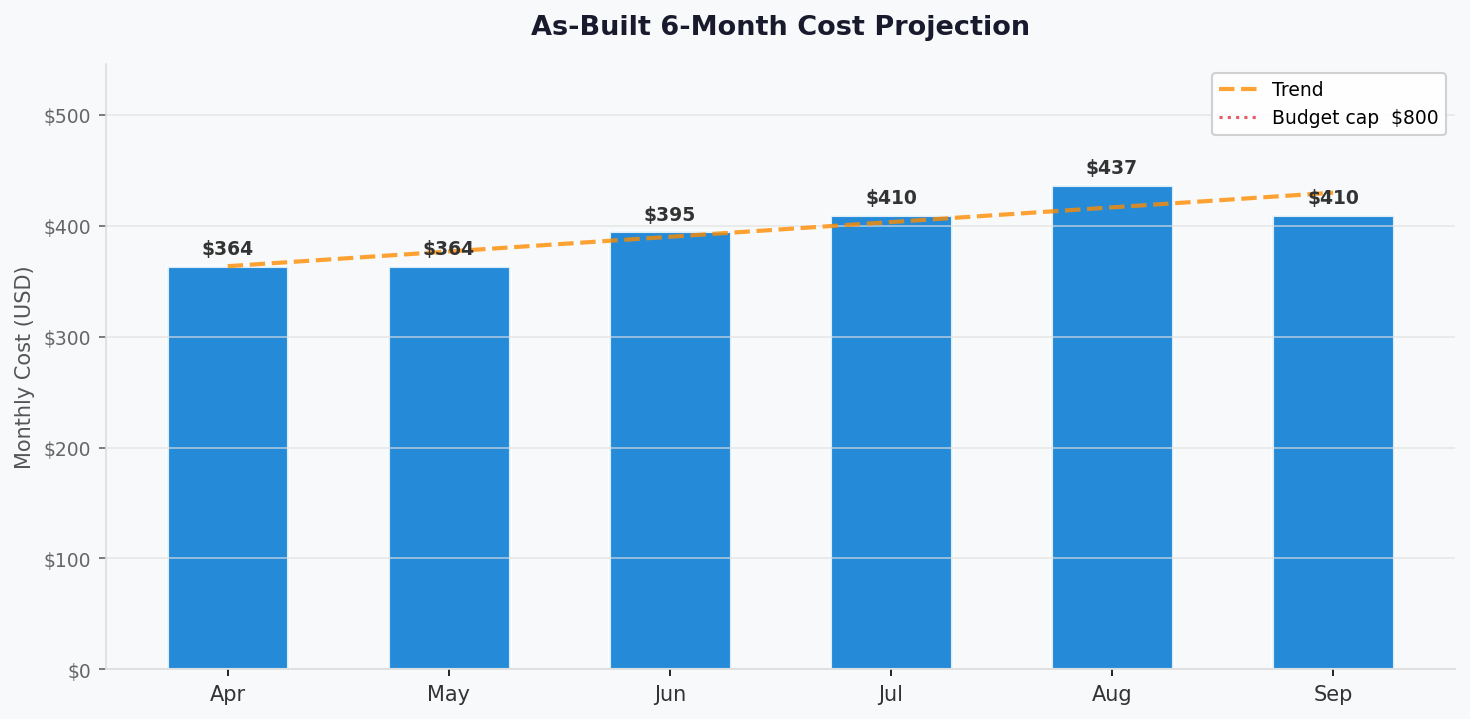

Month-over-Month Projection

Key Design Decisions Affecting Cost

Decision	Cost Impact	Business Rationale	Status
Min 2 App Service instances	+$146.00/month	Availability and peak readiness	Required
Telemetry cap + workspace monitor	+$194.40/month in current estimate	Operational visibility	Required
SQL S0 baseline	+$14.71/month	MVP transactional requirements	Required

🧾 What We Are Not Paying For (Yet)

• Azure WAF/Application Gateway v2
• Azure DDoS Protection Standard
• Multi-region active-passive duplicate stack
• Redis cache tier

⚠️ Cost Risk Indicators

Resource	Risk Level	Issue	Mitigation
Log Analytics	🔴 High	Ingestion estimate dominates monthly spend	Reduce ingestion and tune diagnostic categories
Private Endpoints	🟡 Medium	Region meter unresolved in pricing tool	Re-check meter mapping in next cost cycle
App Service Plan	🟡 Medium	Scale-to-3 scenarios increase compute by $73.00	Track autoscale events and seasonal run rate

⚠️ Watch Item: Monitoring assumptions currently drive the delta versus design estimate.

🎯 Quick Decision Matrix

“If you need X, expect to pay Y more”

Requirement	Additional Cost	SKU Change	Verdict	Notes
Seasonal scale-to-3	+$73.00/month	S1 instances 2 -> 3	🟢 Go	Included in autoscale profile
Full WAF tier	Not in current as-built	Add App Gateway WAF_v2	🟡 Monitor	Evaluate post-MVP
Multi-region DR	Not in current as-built	Duplicate stack in failover region	❌ Budget impact material	Evaluate post-MVP

💰 Savings Opportunities

Total Potential Savings: Variable (telemetry and retention tuning dependent)

Strategy	Commitment	Monthly Savings	Annual Savings	% Reduction
Log filtering + category tuning	N/A	Variable	Variable	Variable
App Insights ingestion tuning	N/A	Variable	Variable	Variable
Planned peak-window scaling only	N/A	Up to $73 in non-peak periods	Up to $876	20.07%

🧾 Detailed Cost Breakdown

IaC / Pricing Coverage

Signal	Value	Status
Templates scanned	9 Bicep files	✅
Resources detected	24 as-built resources	✅
Resources priced	10 primary billable meters	✅
Unpriced resources	Private Endpoint meter unresolved in tool output	⚠️

Line Items

Category	Service	SKU / Meter	Quantity / Units	Est. Monthly
💻 Compute	App Service Plan	S1 Linux	2 instances x 730h	$146.00
💻 Compute	App Service Site	Plan-backed	1	$0.00
💾 Data Services	Azure SQL DB	S0	1 database	$14.71
💾 Data Services	Storage (Hot LRS + txns)	Blob + transactions	50 GB + 100K txns	$1.86
🔐 Security	Key Vault Premium	Base + ops	1 vault + 100K ops	$5.30
🌐 Networking	Private DNS Zones	Private DNS	3 zones	$1.50
🌐 Networking	Private Endpoints	PE meter	3 endpoints	$0.00 (unresolved)
📊 Monitoring	Log Analytics	Analytics Logs	2 GB/day (~60 GB/mo)	$179.40
📊 Monitoring	Application Insights	Enterprise meter	1 component	$15.00
Other	Budget, NSGs, VNet, NICs, autoscale	N/A	N/A	$0.00

Notes

• All dollar figures above are from cost-estimate-subagent output and were not manually adjusted.
• The Private Endpoint meter did not resolve for swedencentral in the subagent output.
• Design estimate from Step 3 used lower monitoring assumptions, causing the main variance.

---

References

Topic	Link
Azure Pricing Calculator	Calculator
Cost Management	Overview
Reserved Instances	Reservations
WAF Cost Optimization	Checklist

---

⬅️ Compliance Matrix	🏠 Demo Index	➡️ —
